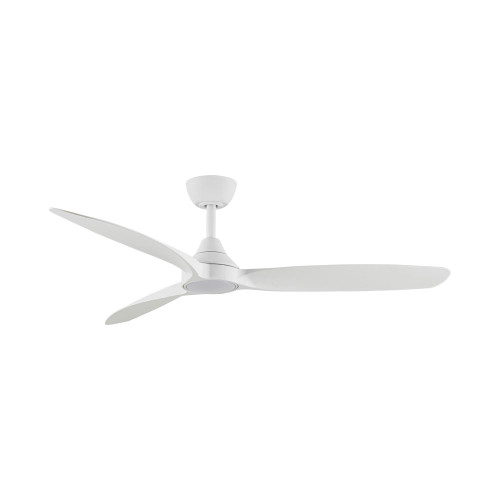

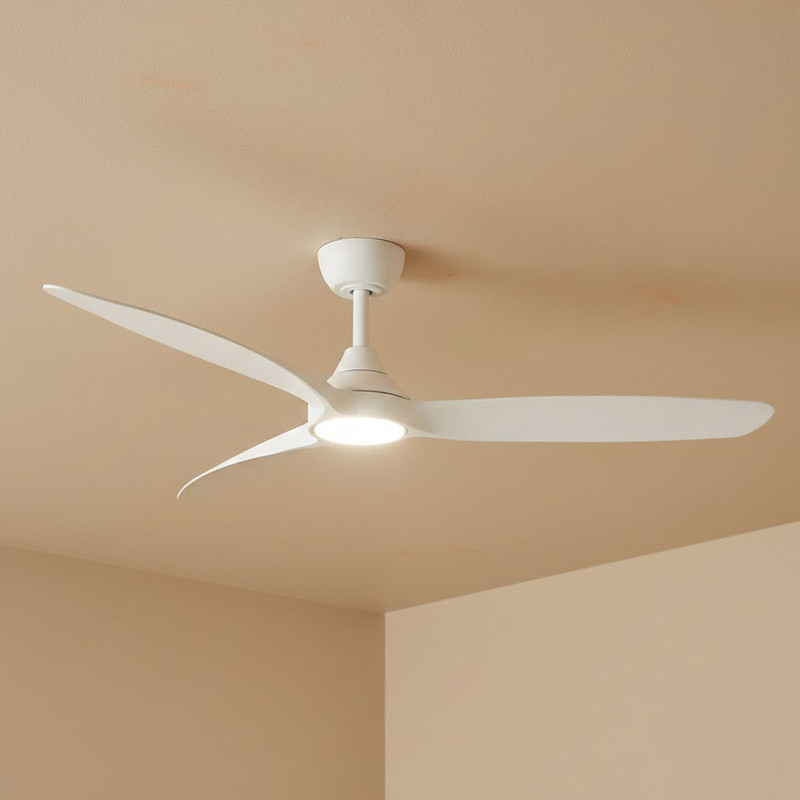

This ceiling fan is a precisely engineered smart air-movement and lighting solution designed for reliable performance in modern indoor and covered outdoor environments. Driven by a high-efficiency 33W brushless DC motor, the system delivers stable rotational control with minimal acoustic output while achieving a maximum rotational speed of up to 195 RPM. With a three-blade aerodynamic configuration and a blade span of 1320mm (52 inch), the fan produces airflow output from 3805m³/hr at the lowest speed up to 13140m³/hr at maximum speed, ensuring consistent thermal comfort across a wide range of room sizes.
The aerodynamic assembly utilises three precision-balanced ABS blades set at a 16° blade pitch to maximise volumetric air displacement and achieve an airflow efficiency of up to 400m³/hr per watt. The structural platform is formed from a steel body and canopy for long-term mechanical stability, while the PMMA lens cover protects the integrated lighting system and supports uniform light diffusion. The exterior finish is executed entirely in matt white across the body, canopy and blades, delivering a clean architectural appearance with high surface durability.
Integrated illumination is provided by a 16W fixed LED lighting system with variable dimming and five-stage selectable colour temperature settings of 2700K, 3000K, 4000K, 5000K and 6000K. The LED module produces a luminous output of up to 2120 lumens and is rated for a service life of 35,000 hours at Ta25°C, providing long-term lighting reliability with reduced maintenance requirements. The fixed LED chip design ensures stable optical performance and consistent light output over the life of the fitting.
Operational control is delivered through both WiFi connectivity via the Smart Life application and a 433MHz remote control, enabling full management of fan speed, reverse function, breeze mode, sleep mode, light on/off control, CCT selection and programmable off-timer settings at 1hr, 4hr and 8hr intervals. The fan is fully reversible for efficient summer and winter operation and is supplied with a WiFi remote control and A23 12V battery for immediate commissioning. Installation must be carried out by a licensed electrician to maintain warranty validity, and the unit is supported by a 6-year warranty comprising 3-year in-home service and an additional 3-year motor replacement period, ensuring long-term operational assurance.
COLOUR: Matt White
MATERIAL: ABS (blades), Steel (body and canopy), PMMA lens cover
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 16°
HANGSURE CANOPY: 10°
HEIGHT: 315mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 195 RPM
AIRFLOW EFFICIENCY: Up to 400m³/hr per watt
AIRFLOW: 13140m³/hr (Speed 6, highest); 12110m³/hr (Speed 5); 10715m³/hr (Speed 4); 8762m³/hr (Speed 3); 6532m³/hr (Speed 2); 3805m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 16W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (daylight white), 6000K (daylight white)
LUMENS: Up to 2120lm
LIFE SPAN: 35,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; light on/off; fan off; CCT selection; timer off only - 1hr 4hr 8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; variable CCT; dimmable LED
WARRANTY: 6 year warranty (3 year in-home + additional 3 year replacement on the motor only)
