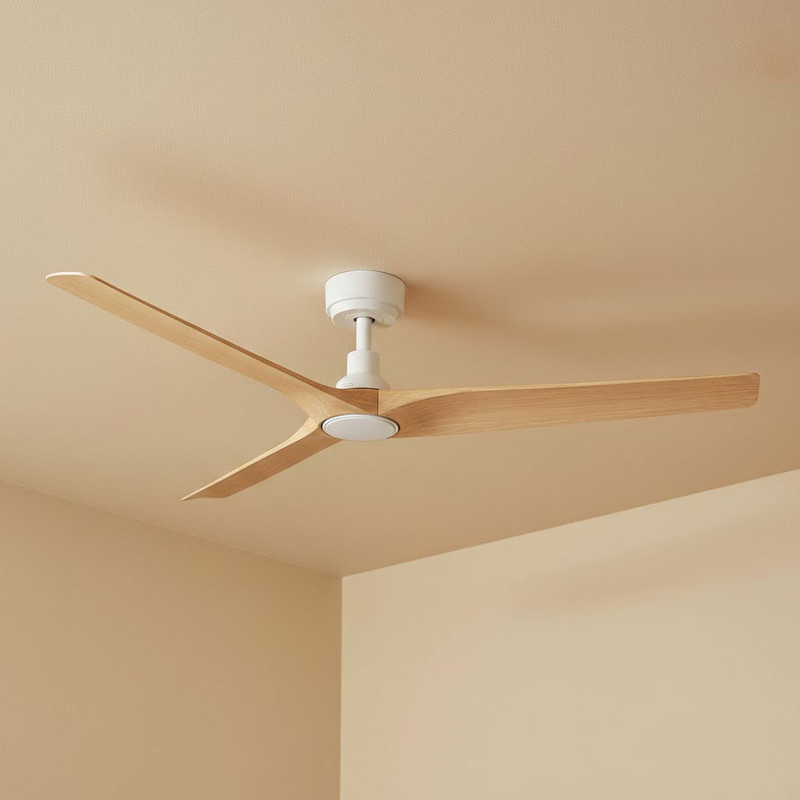

This ceiling fan integrates advanced aerodynamic engineering with a refined architectural form to deliver stable, energy-efficient airflow across a wide range of residential environments. Finished in matt white with contrasting oak blades, it features three precisely balanced ABS aerofoil blades designed to optimise laminar airflow while minimising mechanical noise. The 1320mm span and 10° blade pitch work cohesively to maintain consistent air displacement, making the fan suitable for both indoor and covered outdoor installations where controlled ventilation and visual uniformity are required.
Driven by a high-efficiency 28W DC motor, this model achieves strong performance with exceptionally low power consumption, reaching rotational speeds of up to 220 RPM. Its airflow output peaks at 10500m³/hr on the highest setting, with a maximum efficiency of 390m³/hr per watt, demonstrating a precise balance of torque, blade geometry and electrical optimisation. Six selectable speeds allow granular control over comfort levels, while the reversible summer and winter mode enables year-round operational effectiveness through directional airflow adjustment.
Smart functionality is integrated through 2.4GHz WiFi control, enabling operation via the included remote or through the Smart Life app for expanded scheduling, timer functions and convenience-based automation. The system incorporates sleep mode, breeze mode and reverse mode, allowing the user to tailor the fan's behaviour to environmental conditions and personal comfort. Operating on a 433MHz remote frequency, the control system ensures stable communication and reliable responsiveness in varied installation scenarios.
Constructed with a steel body and canopy engineered for rigidity, this fan maintains a slim 285mm height profile, providing compatibility with lower ceiling clearances without compromising airflow performance. It is designed for installation by a licensed electrician in accordance with GMA-517404-EA compliance requirements and includes a WiFi remote control with an A23 12V battery for immediate deployment. Supported by a 6-year warranty, including a 3-year in-home service period, this ceiling fan represents a high-quality, durable and energy-efficient climate control solution that combines contemporary aesthetics with long-term mechanical reliability.
COLOUR: Matt White (body and canopy), Oak (blade)
MATERIAL: ABS (blades), Steel (body and canopy)
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 10°
HEIGHT: 285mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 28W
RPM: Up to 220
AIRFLOW EFFICIENCY: Up to 390m³/hr per watt
AIRFLOW: 10500m³/hr (Speed 6, highest); 8630m³/hr (Speed 5); 7050m³/hr (Speed 4); 6500m³/hr (Speed 3); 4700m³/hr (Speed 2); 3840m³/hr (Speed 1)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; low ceiling slimline design
COMPLIANCE: GMA-517404-EA
WARRANTY: 6 years (3 year in-home service + 3 years on motor)
