This ceiling fan combines architectural precision with advanced airflow engineering to deliver stable, energy-efficient performance for modern residential environments. Finished in matt white for the body and canopy with elegantly sculpted blades, it pairs a lightweight ABS aerofoil structure with a robust steel motor housing to ensure both mechanical durability and aerodynamic consistency. The 1320mm blade span and 10° pitch have been calibrated to achieve smooth, uniform air distribution while maintaining a slim 285mm profile suitable for lower ceiling applications. The integrated PMMA lens cover provides uniform optical diffusion and protects the LED engine from dust and thermal cycling.
Driven by a high-efficiency 28W DC motor, this fan delivers exceptional performance with rotational speeds up to 220 RPM and an airflow output reaching 10500m³/hr at its highest setting. Its efficiency of up to 390m³/hr per watt positions it as a highly optimised solution for users seeking maximum airflow with minimal energy consumption. Six selectable speed levels offer refined control over air movement, while the reversible motor enables both summer cooling and winter heat recirculation for year-round comfort. Internal motor components are engineered for low-noise operation, supporting bedrooms and other quiet-use environments.
The integrated 18W LED system offers multi-spectrum colour temperature selection, ranging from 2700K to 6000K, allowing precise adaptation to ambient and task-oriented lighting requirements. With an output of up to 1000 lumens and variable dimming capability, the luminaire provides consistent illumination while maintaining high optical stability across its 30,000-hour rated lifespan. The PMMA lens delivers uniform light dispersion without glare, and thermal regulators ensure reliable long-term LED performance even in extended operating conditions.
Equipped with a WiFi remote control, the fan supports Smart Life app connectivity, enabling advanced functions such as CCT selection, six-speed control, breeze mode, sleep mode, reverse mode and multi-stage timers. Its 433MHz remote ensures responsive local operation, and the product includes an A23 12V battery for immediate installation. Suitable for indoor and covered outdoor locations, this model requires installation by a licensed electrician and is fully compliant with GMA-517404-EA. Backed by a 6-year warranty (3-year in-home service plus 3 years on the motor), it provides a reliable, energy-efficient and elegantly engineered climate and lighting solution for contemporary living spaces.
COLOUR: Matt White
MATERIAL: ABS (blades), Steel (body and canopy), PMMA lens cover
BLADES: 3

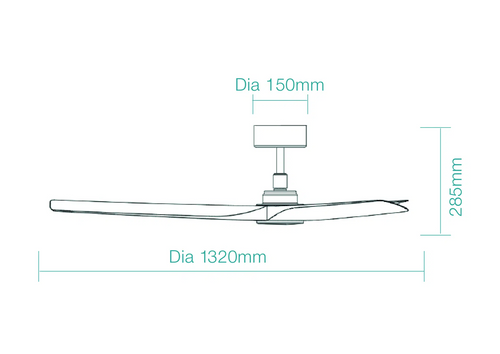

BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 10°
HEIGHT: 285mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 28W
RPM: Up to 220
AIRFLOW EFFICIENCY: Up to 390m³/hr per watt
AIRFLOW: 10500m³/hr (Speed 6, highest); 8630m³/hr (Speed 5); 7050m³/hr (Speed 4); 6500m³/hr (Speed 3); 4700m³/hr (Speed 2); 3840m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 18W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (daylight white), 6000K (daylight white)
LUMENS: Up to 1000lm
LIFE SPAN: 30,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; CCT selection; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; low ceiling slimline design; variable CCT; dimmable LED
COMPLIANCE: GMA-517404-EA
WARRANTY: 6 years (3 year in-home service + 3 years on motor)
