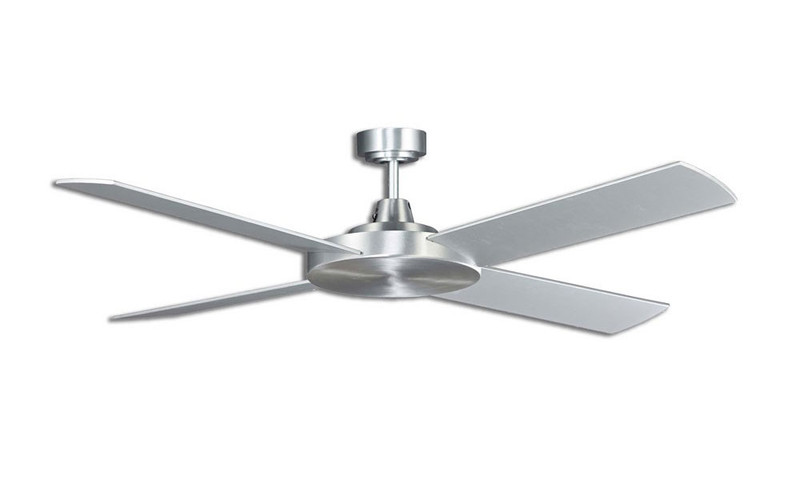

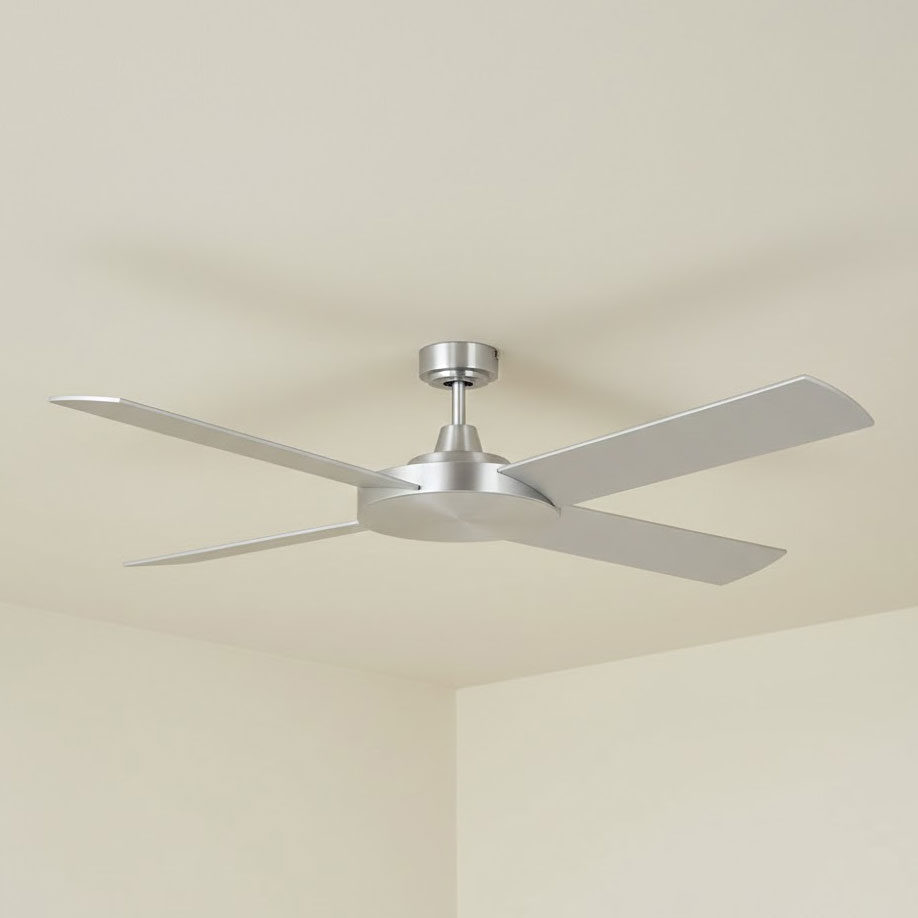

This ceiling fan is engineered as a high-performance air circulation solution for residential interiors and covered outdoor environments, finished in brushed aluminium to deliver a clean, contemporary appearance that integrates seamlessly with modern architectural spaces. Designed with a 1320mm (52-inch) blade span and a precision-balanced four-blade configuration, it provides uniform airflow distribution while maintaining a slim overall profile with a height of just 258mm, making it well suited to rooms with lower ceiling clearances.
The fan is powered by a robust 65W AC motor operating on a 220-240V AC 60Hz electrical supply, delivering an airflow capacity of up to 9600m³/hr. This motor is optimised for consistent torque output across three selectable speed settings, ensuring reliable air movement under varying ambient conditions. A blade pitch of 12.5° is carefully engineered to enhance aerodynamic efficiency, supporting effective air displacement while maintaining smooth and stable operation.
Constructed with durable plywood blades and a corrosion-resistant aluminium body and canopy, the fan offers long-term structural integrity for indoor and covered outdoor use. The brushed aluminium finish extends across the body and canopy, creating a refined and cohesive aesthetic, while the blades complement the overall design. A 130mm diameter ceiling canopy incorporates a HANGSURE mounting system that allows installation on ceilings with up to a 15° rake, providing flexibility across a range of ceiling designs. Operation is controlled via a supplied three-speed wall controller for straightforward and dependable use.
For year-round comfort, the fan features a reversible function that enables airflow direction to be optimised for summer cooling and winter heat recirculation. Installation must be carried out by a licensed electrician, and the fan complies with relevant Australian and New Zealand electrical approval standards for safety and performance. Backed by a comprehensive six-year warranty, including three years in-home service and an additional three years on the motor, this brushed aluminium AC ceiling fan represents a reliable and technically refined solution for efficient air movement in modern living spaces.
COLOUR: Brushed Aluminium
MATERIAL: Plywood (blades) and aluminium (body and canopy)
BLADES: 4
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 12.5°
HANGSURE CANOPY: 15°
HEIGHT: 258mm
CEILING CANOPY: 130mm (diameter)
VOLTAGE: 220-240V AC 60Hz
MOTOR TYPE: AC
MOTOR WATTAGE: 65W
AIRFLOW: 9600m³/hr
WALL CONTROL: Yes (3 speed)
REVERSIBLE: Yes (summer and winter mode)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor use
COMPLIANCE: SAA-141710-EA
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
