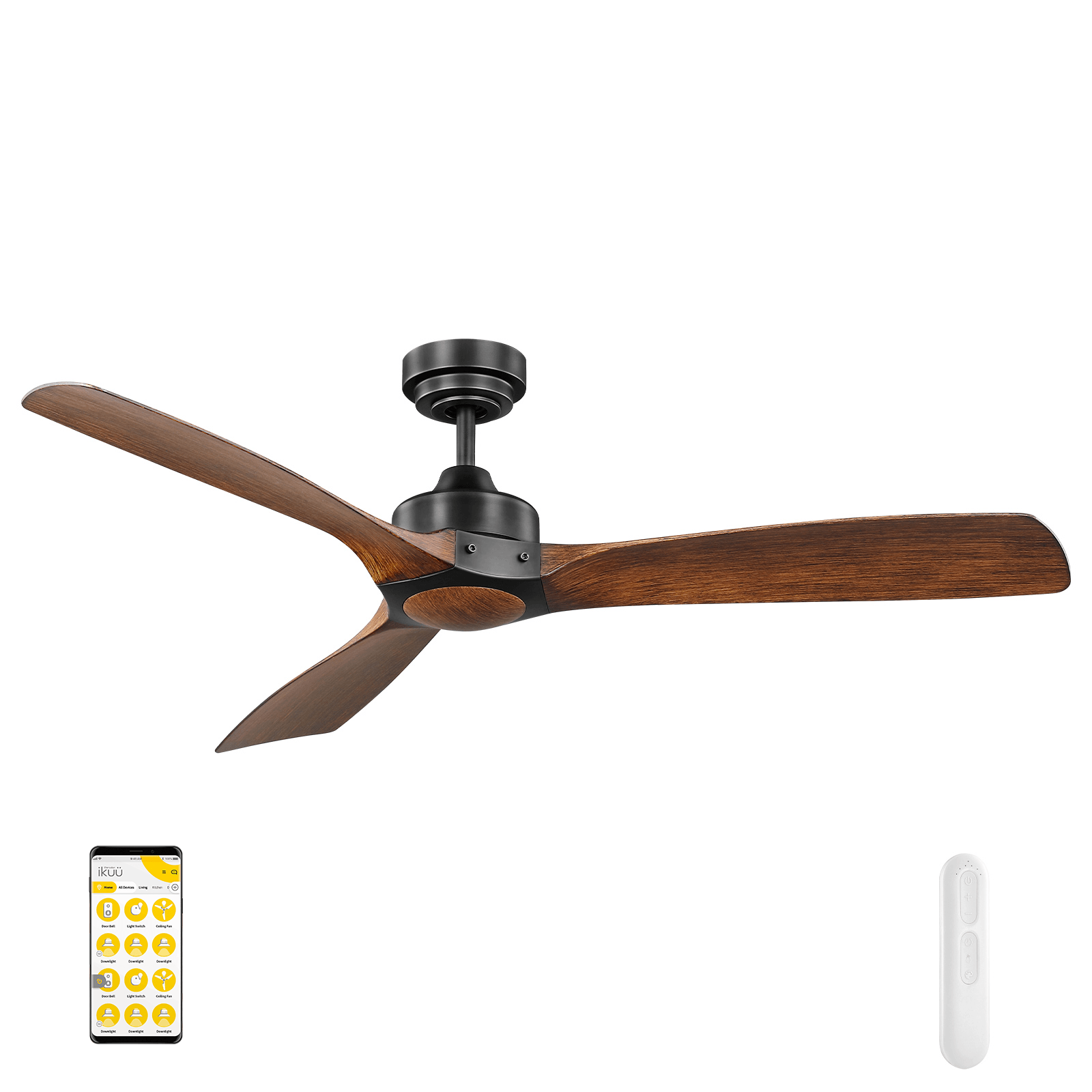

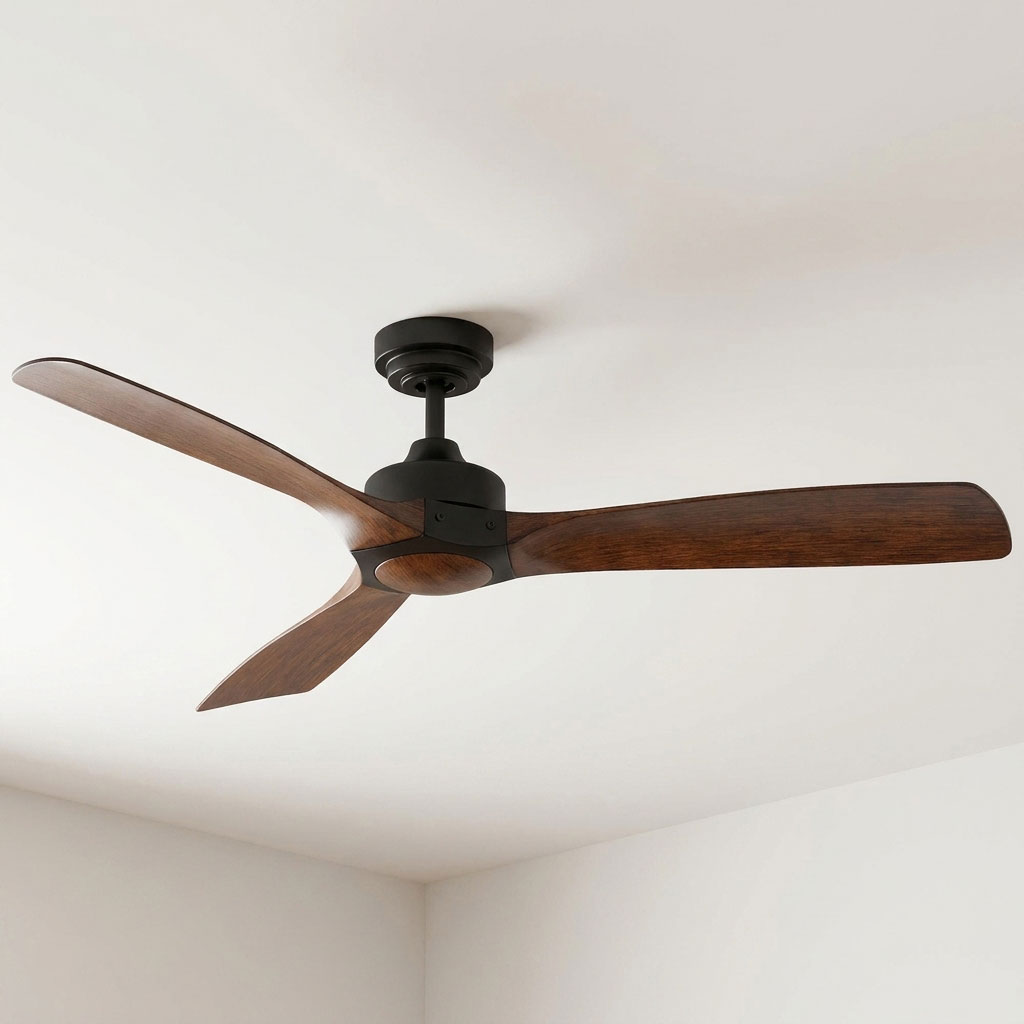

This ceiling fan integrates a 1320mm (52 inch) blade span with a high-efficiency 35W DC motor to deliver strong, stable airflow performance of up to 10904m³/hr, ensuring effective air circulation for medium to large interior spaces. The aerodynamic 3-blade configuration is engineered to optimise air displacement while maintaining low rotational inertia, allowing smooth operation across a controlled speed range of 65 to 195 RPM. The fan is finished in a black housing with contrasting dark timber-look blades, providing a refined aesthetic suitable for contemporary architectural environments.
The drive system utilises a brushless DC motor architecture designed for reduced electrical losses and improved energy efficiency compared to conventional AC motors. Operating on a standard 220-240V AC 50Hz supply, the motor achieves high airflow output with minimal power consumption, while the low <2W standby power contributes to reduced idle energy draw. The mechanical assembly is balanced to minimise vibration and acoustic disturbance, supporting stable performance across all operating speeds. The fan assembly measures 337mm in height with a compact 140mm ceiling canopy, allowing integration into spaces with standard ceiling clearances.
Control functionality is provided via an integrated Wi-Fi remote control system operating on 433.9MHz, enabling 6-speed selection, directional reversal, and programmable fan timers of 1, 4 or 8 hours. Seasonal adaptability is achieved through the reversible motor function, allowing optimised airflow patterns for both summer cooling and winter heat redistribution. Smart connectivity enables app-based control, providing precise operational adjustment and scheduling to support comfort optimisation and energy management within connected home environments.
Constructed from powder-coated metal housing with durable ABS blades, the fan is designed for long-term dimensional stability and resistance to environmental degradation. The corrosion-resistant construction supports reliable performance in humid and coastal climates, making the unit suitable for indoor and covered outdoor applications when professionally installed. Supplied with mounting hardware, remote control, batteries and wall bracket, the system is intended for installation by a licensed electrician to ensure compliance with electrical standards and long-term operational safety, with warranty coverage of 3 years in-home and 6 years on the motor supporting product reliability over extended service life.
COLOUR: Black (body and canopy), Dark Timber (blades)
MATERIAL: Powder-coated metal (housing), ABS (blades)
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
HANGSURE CANOPY: 10°
HEIGHT: 337mm
CEILING CANOPY: 140mm (diameter)
VOLTAGE: 220-240V AC 50Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 35W
RPM: 65 (min) - 195 (max)
AIRFLOW: 10904m³/hr (max)
STANDBY WATTAGE: <2W
WEIGHT: 5.2kg
REMOTE CONTROL: Yes (Wi-Fi; 6 speeds; reverse; fan timer 1hr, 4hr or 8hr; 433.9MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: Remote control; 2 x AAA batteries; wall bracket for remote; mounting screws
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Corrosion-resistant construction suitable for tropical environments; Smart app control via mobile device
WARRANTY: 3 years in-home, 6 years motor warranty
