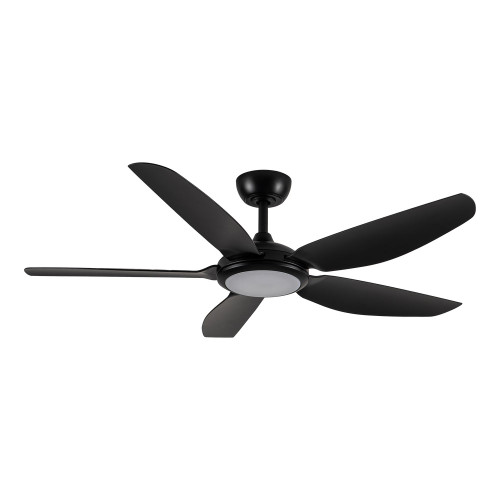

This ceiling fan in a refined matt black finish delivers a high-performance ventilation and lighting solution engineered for contemporary residential interiors and sheltered outdoor environments. Driven by a precision-balanced 33W DC motor, the unit operates with high energy efficiency and low acoustic output while achieving a maximum rotational speed of up to 190 RPM. The expansive 1320mm (52-inch) blade span combined with six selectable speed settings ensures wide and evenly distributed airflow suitable for both active cooling and gentle ambient circulation.
The aerodynamic configuration incorporates five precisely contoured ABS blades supported by a rigid steel body and canopy, ensuring long-term mechanical stability and resistance to structural fatigue. A blade pitch of 14° is optimised to enhance volumetric air displacement, producing an airflow output of up to 14,110m³/hr at peak speed with an airflow efficiency of up to 430m³/hr per watt. The slimline profile, 313mm overall height and 150mm diameter ceiling canopy allow for stable low-profile installation in a wide range of ceiling heights without compromising performance.
Integrated illumination is provided by a 24W fixed LED lighting system delivering up to 2160 lumens, with variable colour temperature selection across 2700K, 3000K, 4000K, 5000K and 6000K to accommodate diverse functional and ambient lighting requirements. The LED system is fully dimmable via variable dimming control and is rated for a long operational life of up to 35,000 hours at Ta25°C, ensuring consistent luminous performance over extended service periods.

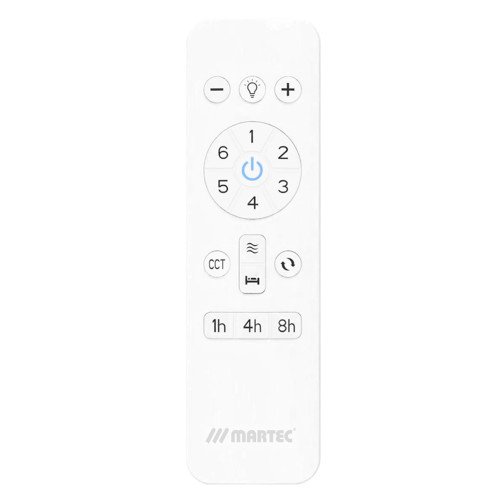

Operational control is managed through a WiFi-enabled remote control system using a 433MHz radio frequency interface, offering six fan speeds, full summer and winter reversibility, breeze mode, sleep mode, CCT selection, fan off control and programmable timer settings of 1, 4 or 8 hours. Smart Life app connectivity provides seamless mobile device integration for advanced automation and control. Designed for indoor and covered outdoor applications, the fan operates on a 220-240V AC 50-60Hz power supply, requires installation by a licensed electrician, complies with approval number GMA-519873-EA, and is supported by a comprehensive six-year warranty comprising three years in-home service with an additional three-year motor replacement coverage.
COLOUR: Matt Black
MATERIAL: ABS (blades), Steel (body and canopy), PMMA lens cover
BLADES: 5
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 14°
HANGSURE CANOPY: 10°
HEIGHT: 313mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 190
AIRFLOW EFFICIENCY: Up to 430m³/hr per watt
AIRFLOW: 14110m³/hr (Speed 6); 11555m³/hr (Speed 5); 9255m³/hr (Speed 4); 7210m³/hr (Speed 3); 5930m³/hr (Speed 2); 4406m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 24W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (daylight white), 6000K (daylight white)
LUMENS: Up to 2160lm
LIFE SPAN: 35,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; CCT selection; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; slimline design, variable CCT; dimmable LED
COMPLIANCE: GMA-519873-EA
WARRANTY: 6 year warranty (3 year in-home + additional 3 year replacement on the motor only)
