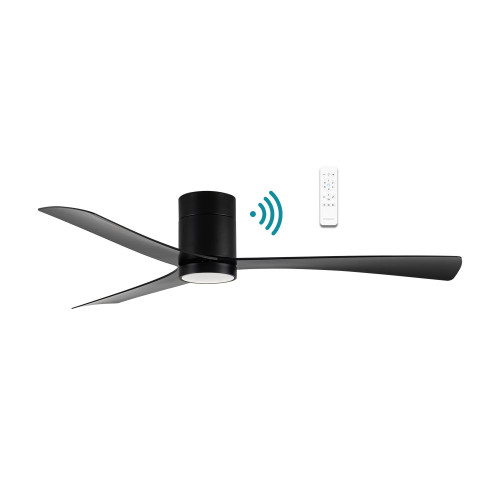

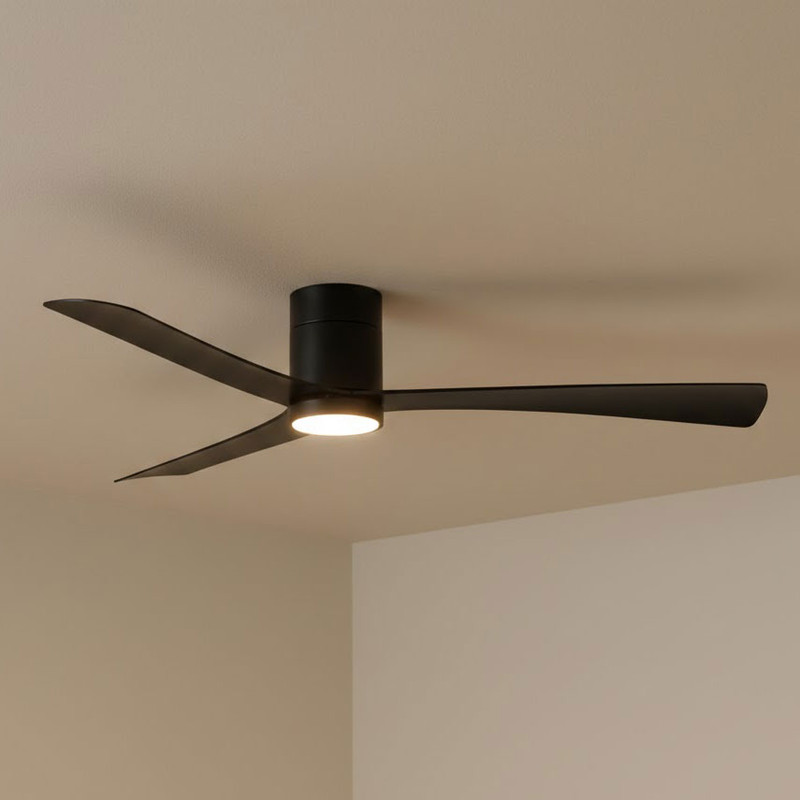

This ceiling fan is a low-profile smart DC ceiling fan engineered for high-efficiency air circulation and integrated lighting performance in modern indoor and covered outdoor environments. Finished in matt black throughout, the fan combines architectural minimalism with advanced motor technology to deliver smooth, stable, and energy-efficient operation. The precision-balanced three-blade configuration and slimline canopy design allow the unit to sit close to the ceiling at an installed height of only 220 mm, making it ideal for spaces with limited ceiling clearance while maintaining powerful airflow performance.
Air movement is generated by a high-efficiency 33W brushless DC motor operating at speeds of up to 210 RPM, delivering a maximum airflow of 14200 m³/hr and an airflow efficiency of up to 430 m³/hr per watt. Six electronically controlled speed levels provide finely graduated airflow output from gentle comfort circulation to high-volume cooling performance, ensuring consistent environmental control across a wide range of room sizes. The optimised 12° blade pitch enhances aerodynamic lift while minimising turbulence and operating noise for stable long-term operation.
The integrated 16W LED lighting system utilises fixed high-output LED chips housed behind a PMMA lens to ensure uniform light distribution and long operational life. With variable dimming and six-stage selectable colour temperature from 2700K through to 6000K, the light output can be precisely tuned for ambient, task, or daylight-balanced illumination. The LED system delivers up to 1885 lumens with a rated lifespan of 35000 hours at Ta25°C, providing both energy efficiency and long-term reliability.
Comprehensive control is provided through the supplied WiFi remote operating on a 433 MHz frequency, offering six fan speeds, summer and winter reverse function, breeze and sleep modes, fan off control, CCT selection, and timer off options for 1, 4, or 8 hours. Smart Life app connectivity enables advanced smart home integration for added operational flexibility. Constructed with ABS blades and a steel body and canopy, this ceiling fan is designed for installation by a licensed electrician and is supplied with a 6-year warranty consisting of 3 years in-home service plus an additional 3 years motor replacement warranty, ensuring long-term performance assurance.
COLOUR: Matt Black
MATERIAL: ABS (blades), Steel (body and canopy), PMMA lens cover
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 12°
HANGSURE CANOPY: Flat surface level installation only
HEIGHT: 220mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 210
AIRFLOW EFFICIENCY: Up to 430m³/hr per watt
AIRFLOW: 14200m³/hr (Speed 6, highest); 11270m³/hr (Speed 5); 9412m³/hr (Speed 4); 7253m³/hr (Speed 3); 4526m³/hr (Speed 2); 2500m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 16W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (daylight white), 6000K (daylight white)
LUMENS: Up to 1885lm
LIFE SPAN: 35000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; CCT selection; timer off only - 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; low profile and slimline design; variable CCT; dimmable LED
WARRANTY: 6 year warranty (3 year in-home + additional 3 year replacement on the motor only)
