This ceiling fan integrates advanced aerodynamics with robust material engineering to deliver reliable, high-performance air circulation in both residential and covered outdoor environments. Constructed with precision-moulded ABS blades and a steel motor housing, it maintains structural stability while minimising rotational vibration. Its three-blade configuration, 1320 mm span, and 10° blade pitch work in concert with a highly efficient DC motor to generate smooth, laminar airflow across multiple speed settings. With an overall height of just 331 mm and a 160 mm diameter canopy, the unit also offers a slimline profile suitable for installations where spatial clearance is limited.
At peak output, the motor operates at up to 235 rpm and consumes only 45 W, demonstrating exceptional energy efficiency with airflow performance reaching 10,530 m³/hr at the highest speed. Its efficiency ratio of up to 234 m³/hr per watt reflects optimised aerodynamic tuning and reduced drag across the blade surfaces. The integrated reversible function enables seasonal adaptability, promoting downdraft flow in summer conditions and assisting thermal recirculation in winter. A 10° hangsure canopy further supports stable mounting on slightly angled ceilings, ensuring consistent operational balance.
Lighting performance is delivered via a fixed 20 W LED module housed behind a PMMA lens engineered for uniform optical diffusion. The luminaire provides a broad selectable CCT range—2700 K through 6000 K—allowing precise adjustment from warm ambient illumination to daylight-balanced output, with luminous flux reaching up to 2500 lm. Its dimmable driver architecture and 50,000-hour rated lifespan at Ta25 °C ensure long-term photometric stability and minimal maintenance requirements. These characteristics make the luminaire suitable for environments requiring both functional and energy-efficient lighting.

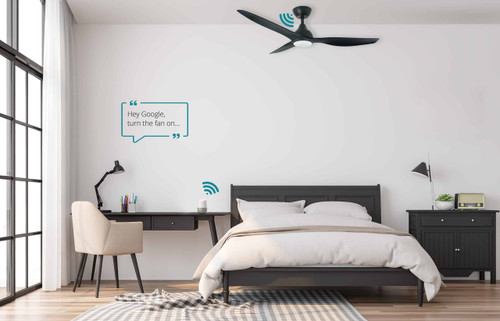

Control is facilitated through a WiFi-enabled remote system operating on 433 MHz, offering six speed selections, reverse mode, breeze and sleep algorithms, timer options, and full CCT and dimming management. Smart Life app integration extends functionality to mobile devices, enabling remote scheduling and parameter adjustments with high precision. Supplied with an A23 battery and backed by a 6-year warranty (including 3-year in-home support), this ceiling fan is designed for dependable operation when installed by a licensed electrician, providing a sophisticated climate and lighting solution for diverse interior applications.
COLOUR: Matt Black
MATERIAL: ABS (blades), Steel (body and canopy), PMMA lens cover
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 10°
HANGSURE CANOPY: 10°
HEIGHT: 331mm
CEILING CANOPY: 160mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 45W
RPM: Up to 235
AIRFLOW EFFICIENCY: Up to 234m³/hr per watt
AIRFLOW: 10530m³/hr (Speed 6, highest); 9500m³/hr (Speed 5); 8100m³/hr (Speed 4); 7050m³/hr (Speed 3); 4800m³/hr (Speed 2); 2800m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 20W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (cool white), 6000K (daylight white)
LUMENS: Up to 2500lm
LIFE SPAN: 50,000 hours at Ta25°C
DIMMABLE: Yes
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; CCT selection; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; variable CCT; dimmable LED; low ceiling slimline design
COMPLIANCE: SGS-220783-EA
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
