This ceiling fan integrates precision aerodynamic engineering with an elegant contemporary profile, delivering stable airflow performance and refined visual balance. Finished in black, it is constructed from high-quality ABS blade material paired with a rigid steel body and canopy to ensure long-term structural durability. The low-profile 230mm height enables unobtrusive installation in areas with reduced ceiling clearance, while the flat-surface hangsure configuration maintains a secure, vibration-free mounting interface. Its flush-mount form and PMMA lens cover create a cohesive architectural appearance suited to both residential and sheltered outdoor environments.
The advanced DC motor system operates at a maximum consumption of just 33W, providing high rotational efficiency with speeds reaching up to 170 RPM. This motor technology delivers exceptionally smooth, low-noise performance and superior airflow efficiency of up to 445m³/hr per watt, enabling powerful air movement with minimal electrical demand. The aerodynamically sculpted three-blade assembly spans 1320mm with a precisely engineered 15° pitch, generating a maximum airflow output of 14700m³/hr at Speed 6. The six selectable speed levels allow adaptable cooling performance, ranging from gentle background circulation to strong, room-wide ventilation.
Integrated LED lighting further enhances functional versatility, incorporating a 16W high-performance light engine with selectable colour temperatures from 2700K to 6000K. This variable CCT system enables precise tuning of ambience, from warm atmospheric illumination to crisp daylight-quality output, producing up to 1415 lumens of uniform, visually comfortable light. The LED module includes smooth, variable dimming and is protected by a PMMA lens optimised for optical diffusion and long-term clarity. With a rated lifespan of 35,000 hours at Ta25°C, the lighting system provides reliable, maintenance-efficient operation across a wide range of applications.
WiFi connectivity enables full integration with the Smart Life app, providing remote access to all fan and lighting functions including speed selection, reverse mode, CCT adjustment, sleep settings and timer control. The supplied handset offers 433MHz operation with intuitive onboard controls and includes a pre-installed A23 battery for immediate commissioning. Designed for indoor and covered outdoor environments and compliant with GMA-516648-EA, this ceiling fan must be installed by a licensed electrician to meet Australian regulatory standards. A comprehensive 6-year warranty (3-year in-home service plus 3 additional years on the motor) ensures long-term reliability and confidence in performance.
COLOUR: Matt Black
MATERIAL: ABS (blades), Steel (body and canopy), PMMA lens cover
BLADES: 3

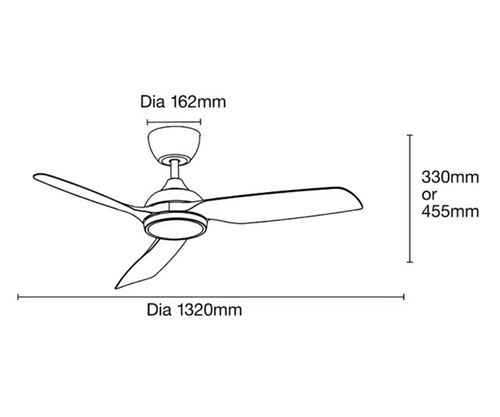

BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 15°
HANGSURE CANOPY: Flat surface installation only
HEIGHT: 230mm
CEILING CANOPY: 160mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 170
AIRFLOW EFFICIENCY: Up to 445m³/hr per watt
AIRFLOW: 14700m³/hr (Speed 6); 12170m³/hr (Speed 5); 10170m³/hr (Speed 4); 7830m³/hr (Speed 3); 4890m³/hr (Speed 2); 2500m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 16W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (daylight white), 6000K (daylight white)
LUMENS: Up to 1415lm
LIFE SPAN: 35,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; CCT selection; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; variable CCT; dimmable LED; low-profile flush-mount design
COMPLIANCE: GMA-516648-EA
WARRANTY: 6 years (3 year in-home service + 3 years on motor)
