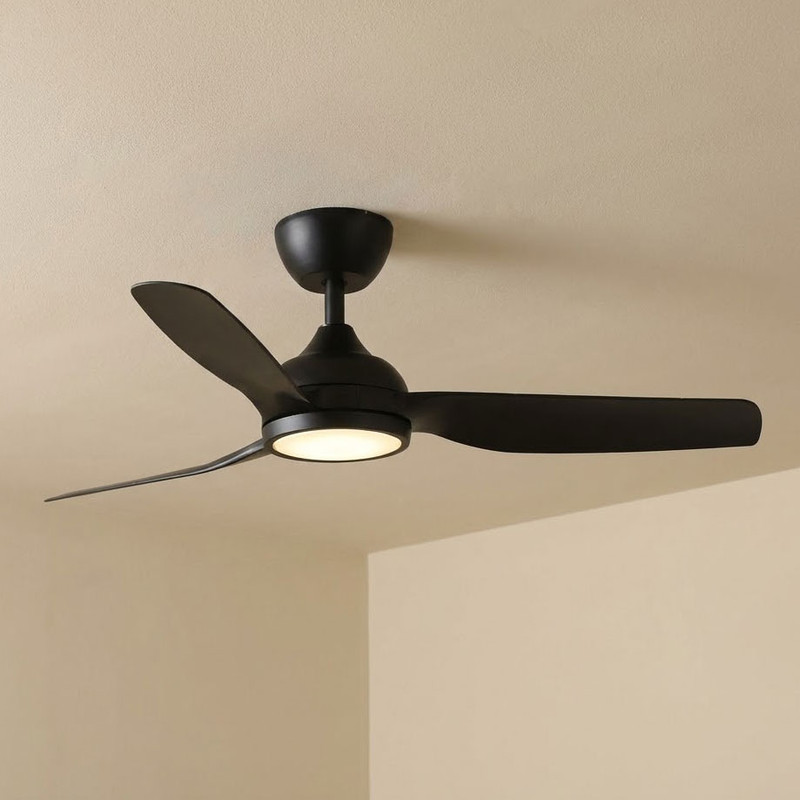

This ceiling fan integrates advanced DC motor engineering with a streamlined, contemporary form to deliver efficient airflow and consistent illumination for modern residential environments. Constructed from durable ABS for the body, canopy and blades, it achieves strong structural stability while maintaining resistance to humidity and environmental variations typical of indoor and covered outdoor settings. Its matt black finish enhances the architectural profile, while the integrated PMMA lens ensures optical clarity and uniform light transmission. With a 1320mm blade span and an 18° pitch, the aerodynamic design maximises air displacement while maintaining low-noise rotational characteristics.
The high-efficiency 33W DC motor supports a top speed of 170 RPM, producing a peak airflow of 11300m³/hr. This motor architecture offers a superior power-to-airflow ratio, reaching efficiencies up to 342m³/hr per watt, which results in reduced energy consumption compared with traditional AC systems. The fan maintains stable airflow performance across its six selectable speeds, enabling precise environmental control from gentle circulation to high-volume cooling. Its reversible functionality further enhances seasonal usability, providing upward circulation during winter and direct cooling during summer.
Integrated LED lighting expands the fan's functionality, delivering up to 2360lm of luminous output through its 24W LED engine. The built-in multi-stage CCT system allows seamless adjustments between 2700K, 3000K, 4000K, 5000K and 6000K, ensuring compatibility with various visual environments from warm ambient settings to high-clarity daylight conditions. The PMMA optic enhances light uniformity, while the long 35,000-hour rated lifespan ensures sustained performance with minimal degradation. Variable dimming functionality offers further flexibility, allowing the lighting intensity to be controlled independently of the fan operation.
Operational control is facilitated through a WiFi-enabled remote system that supports app connectivity via Smart Life, as well as on-device access to all speed, timing, lighting and mode functions. Breeze mode, sleep mode and timer functions enhance user comfort through automated airflow regulation, while the supplied 2 downrods enable installation flexibility. With an IP55 rating and compliance with GMA-517332-EA standards, the fan is engineered for reliability in indoor and covered outdoor applications when installed by a licensed electrician. Supported by a 6-year warranty, including 3 years in-home service, this ceiling fan offers a dependable, energy-efficient and technologically advanced climate control solution for contemporary spaces.
COLOUR: Matt Black
MATERIAL: ABS (body, canopy and blades), PMMA lens cover
IP RATING: IP55 (fully weatherproof)
BLADES: 3

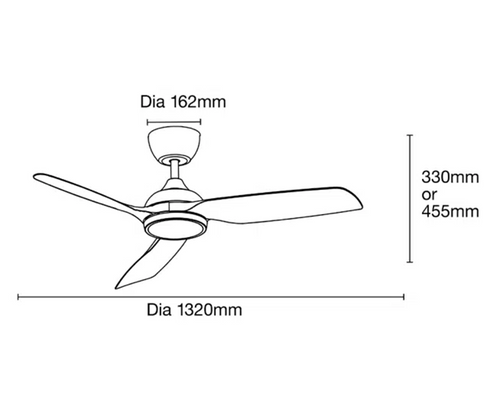

BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 18°
HEIGHT: 330mm
CEILING CANOPY: 162mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 170
AIRFLOW EFFICIENCY: Up to 342m³/hr per watt
AIRFLOW: 11300m³/hr (Speed 6, highest); 8940m³/hr (Speed 5); 8340m³/hr (Speed 4); 6060m³/hr (Speed 3); 5340m³/hr (Speed 2); 3780m³/hr (Speed 1)

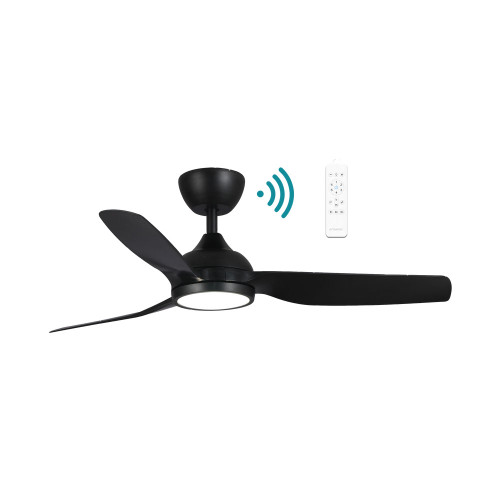

REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; CCT selection; timer 1hr/4hr/8hr; 433MHz)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 24W
COLOUR TEMP: 2700K (warm light), 3000K (warm light), 4000K (cool white), 5000K (cool white), 6000K (daylight white)
LUMENS: Up to 2360lm
LIFE SPAN: 35,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 2 downrods; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only

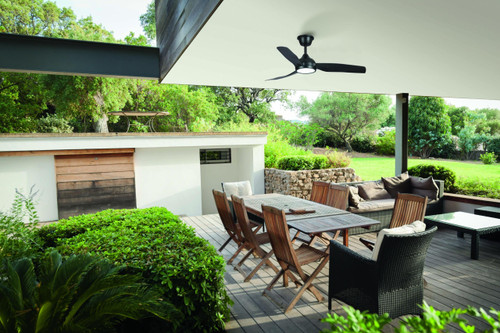

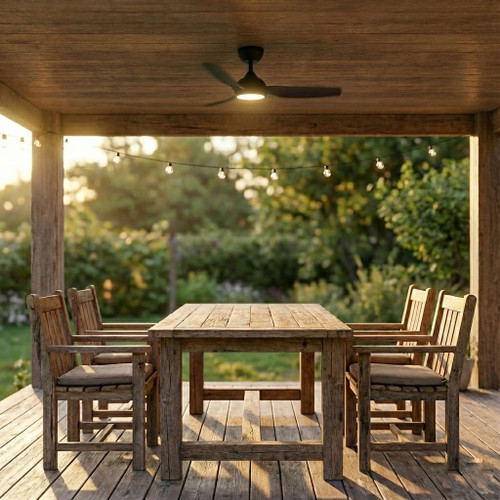

APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; variable CCT; dimmable LED
COMPLIANCE: GMA-517332-EA
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
