This ceiling fan is engineered to deliver efficient airflow performance through a refined combination of aerodynamic blade geometry and advanced DC motor technology. Finished entirely in matt black, it features a precisely balanced three-blade ABS assembly designed to minimise drag while maintaining stable rotational dynamics. The 1320mm blade span and 15° pitch are calibrated to enhance volumetric air movement, making the fan suitable for both indoor and covered outdoor environments where reliable and consistent cooling performance is required.
Driven by a 33W high-efficiency DC motor, the fan achieves rotational speeds of up to 170 RPM while maintaining exceptionally low acoustic output. Its airflow capability reaches 14700m³/hr on the highest setting, with incremental performance levels across all six speeds to accommodate varying comfort requirements. The motor’s efficiency rating of up to 445m³/hr per watt highlights its energy-conserving design, offering improved operating economy compared to equivalent AC-motor systems. Integrated reversible functionality enables effective year-round use by supporting both summer cooling and winter heat redistribution.
The fan incorporates advanced control features through an included WiFi remote, offering six speeds, reverse mode, breeze simulation, sleep mode and multi-stage timers (1hr/4hr/8hr). Smart Life app compatibility extends this control to mobile devices, enabling remote operation and schedule automation. Operating on 220-240V AC at 50-60Hz, the system maintains stable electrical performance, while the low-profile 205mm height and flat-mount hangsure canopy allow installation in spaces with restricted ceiling clearance. The steel body and canopy enhance structural rigidity while providing sustained resistance to long-term mechanical fatigue.
Designed for installation by a licensed electrician, this model complies with GMA-516648-EA and is engineered for safe, durable performance in demanding residential conditions. It includes a WiFi remote control and an A23 12V battery for immediate operation. Supported by a 6-year warranty (3-year in-home service plus 3 years on the motor), the fan delivers a dependable, energy-efficient and architecturally streamlined airflow solution that aligns with modern interior requirements while offering high-precision climatic control.
COLOUR: Matt Black
MATERIAL: ABS (blades), Steel (body and canopy)
BLADES: 3

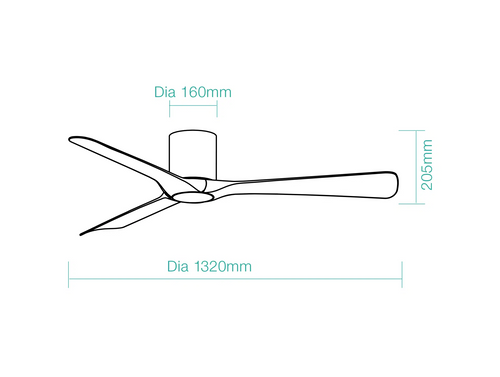

BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 15°
HANGSURE CANOPY: Flat surface installation only
HEIGHT: 205mm
CEILING CANOPY: 160mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 170
AIRFLOW EFFICIENCY: Up to 445m³/hr per watt
AIRFLOW: 14700m³/hr (Speed 6); 12170m³/hr (Speed 5); 10170m³/hr (Speed 4); 7830m³/hr (Speed 3); 4890m³/hr (Speed 2); 2500m³/hr (Speed 1)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; low ceiling slimline design
COMPLIANCE: GMA-516648-EA
WARRANTY: 6 years (3 year in-home service + 3 years on motor)
