This ceiling fan is engineered to deliver stable, energy-efficient airflow across both indoor and covered outdoor environments, integrating advanced DC motor technology with a robust architectural form. Constructed from high-strength ABS for the body, canopy and blades, it provides excellent durability while resisting corrosion and moisture ingress under IP55 protection. The streamlined three-blade configuration is aerodynamically profiled with an 18° pitch to promote efficient air movement while maintaining quiet operation, making it suitable for residential living spaces, alfresco areas and other sheltered outdoor installations. Its matt black finish presents a clean, modern aesthetic that complements contemporary and minimalist interiors.
Driven by a 33W DC motor, the fan achieves precise performance control with rotational speeds up to 170 RPM, allowing it to deliver strong airflow output while minimising power consumption. The system produces up to 11300m³/hr at its highest setting with an airflow efficiency of up to 342m³/hr per watt, ensuring effective air circulation even in warmer conditions. Six selectable speeds provide granular adjustment for user comfort, and the reversible summer-winter mode enables year-round functionality by directing airflow either downward for cooling or upward to assist with thermal redistribution.

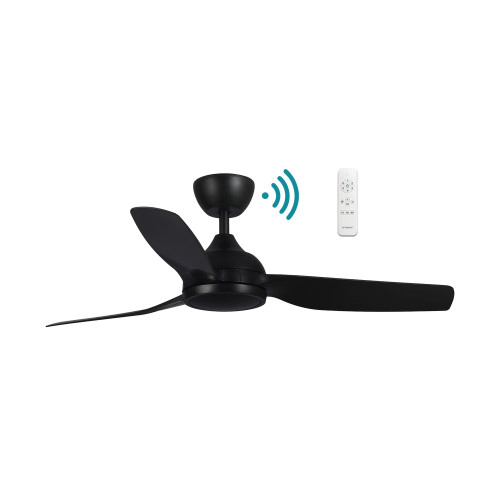

Smart functionality is integrated through WiFi connectivity and compatibility with the Smart Life app, enabling convenient operation via mobile device alongside the supplied remote control. The remote provides access to all core functions including six speeds, reverse mode, breeze mode, sleep mode, fan off, and programmed timers of 1, 4 or 8 hours. The fan includes two downrods for installation flexibility, along with an A23 12V battery for immediate remote operation. All operational modes function through a stable 433MHz control frequency to ensure reliable responsiveness.

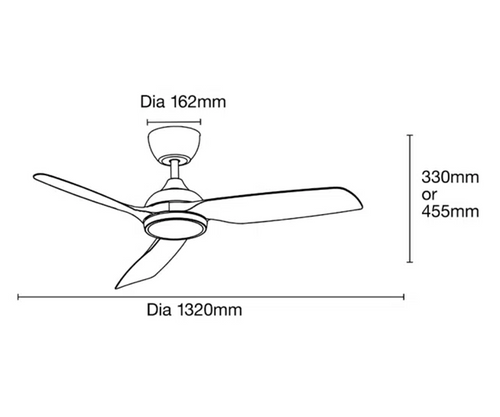

Designed for long-term performance, this ceiling fan must be installed by a licensed electrician to maintain compliance with GMA-517332-EA. Its compact 330mm overall height, 162mm canopy diameter and 1320mm blade span allow for versatile use across various ceiling configurations while supporting strong mechanical stability. Backed by a 6-year warranty including 3 years in-home service and an additional 3 years on the motor, this model offers a dependable, high-efficiency cooling solution with a fully weather-resistant build suitable for demanding residential applications.
COLOUR: Matt Black
MATERIAL: ABS (body, canopy and blades)
IP RATING: IP55 (fully weatherproof)
BLADES: 3
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 18°
HEIGHT: 330mm
CEILING CANOPY: 162mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 170
AIRFLOW EFFICIENCY: Up to 342m³/hr per watt
AIRFLOW: 11300m³/hr (Speed 6, highest); 8940m³/hr (Speed 5); 8340m³/hr (Speed 4); 6060m³/hr (Speed 3); 5340m³/hr (Speed 2); 3780m³/hr (Speed 1)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 2 downrods; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only

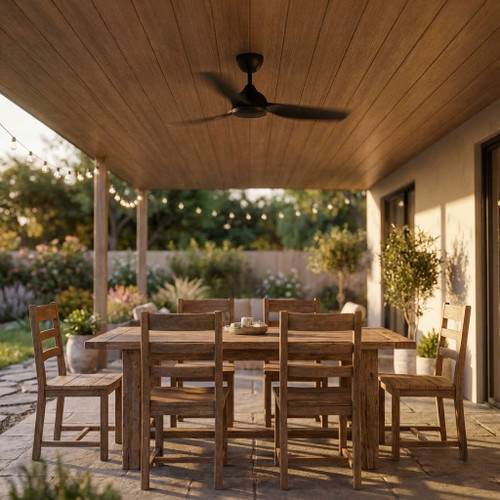

APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity
COMPLIANCE: GMA-517332-EA
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
