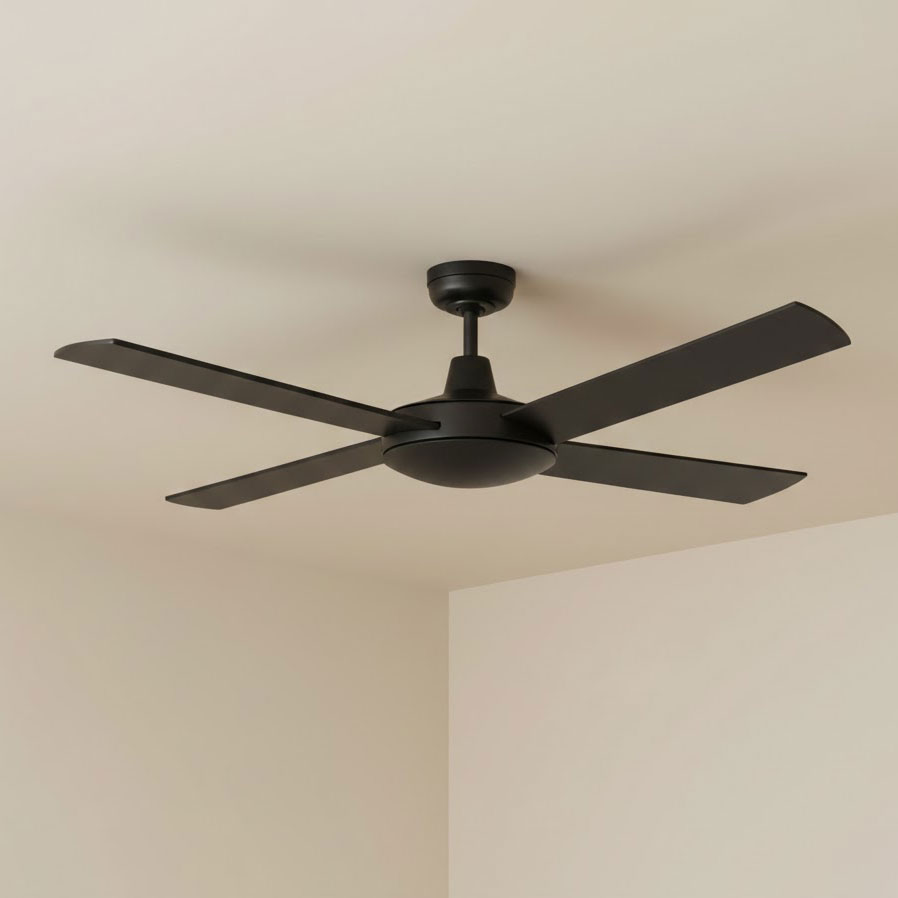

This ceiling fan is engineered as a robust and efficient air circulation solution for indoor residential environments, finished in matt black to provide a refined and contemporary aesthetic that integrates seamlessly with modern interior schemes. Designed around a 1320mm (52-inch) sweep and a four-blade configuration, it delivers stable airflow distribution while maintaining controlled acoustic performance. The streamlined profile, with an overall height of 315mm, allows it to integrate effectively into spaces with varying ceiling heights without compromising functionality or visual balance.
The fan utilises an AC motor rated at 60W, operating on a 220-240V AC 50Hz electrical supply, to generate an airflow output of up to 9600m³/hr. This motor is engineered to deliver consistent torque across three selectable speed settings, ensuring dependable air movement for everyday comfort. The blade geometry is optimised with a 12.5° pitch to enhance aerodynamic efficiency, promoting smooth airflow while maintaining rotational stability.
Constructed with sealed plywood blades and a die cast aluminium body, the fan offers a durable and structurally stable assembly suitable for long-term indoor use. The matt black finished body and blades contribute to a cohesive and understated appearance, while the 130mm diameter ceiling canopy incorporates a HANGSURE mounting system that supports installation on ceilings with up to a 15° rake. Operation is managed via a dedicated three-speed wall controller, providing straightforward and reliable control.
For year-round climate control, the fan incorporates a reversible function that allows airflow direction to be optimised for both summer cooling and winter heat recirculation. Intended for indoor applications only and requiring installation by a licensed electrician, it complies with relevant Australian and New Zealand electrical approvals for safety and performance assurance. Supported by a six-year warranty, comprising three years in-home service and an additional three years on the motor, this matt black ceiling fan represents a reliable and technically refined solution for consistent indoor air circulation.
COLOUR: Matt Black
MATERIAL: Plywood (blades) and die cast aluminium (body)
BLADES: 4
BLADE SPAN: 1320mm (52 inch)
BLADE PITCH: 12.5°
HANGSURE CANOPY: 15°
HEIGHT: 315mm
CEILING CANOPY: 130mm (diameter)
VOLTAGE: 220-240V AC 50Hz
MOTOR TYPE: AC
MOTOR WATTAGE: 60W
AIRFLOW: 9600m³/hr
WALL CONTROL: Yes (3 speed)
REVERSIBLE: Yes (summer and winter mode)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor only
COMPLIANCE: SAA-131578-EA; SAA-131740-EA; SAA-131741-EA
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
