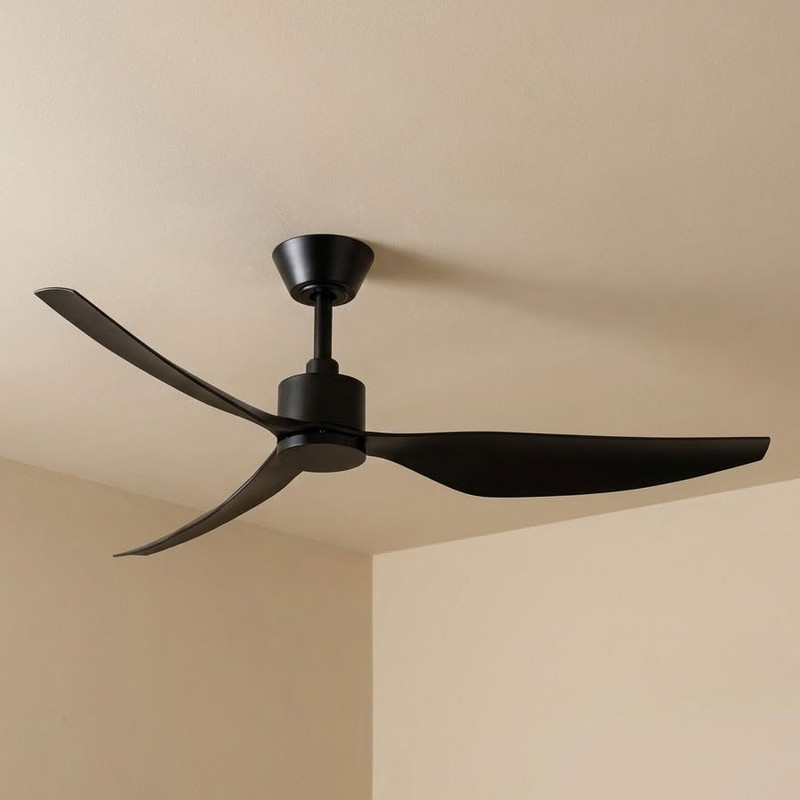

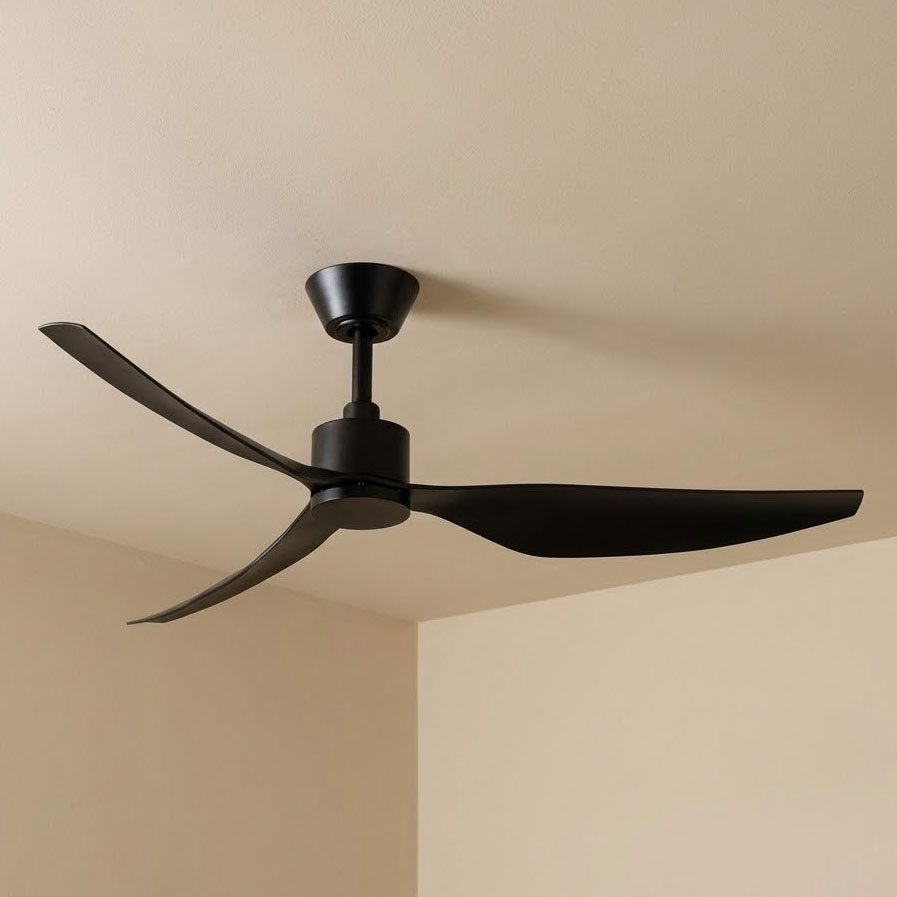

This ceiling fan delivers a refined balance of aerodynamic efficiency and architectural simplicity, engineered to provide stable airflow performance for modern residential environments. Finished in matt black, it incorporates three precision-moulded ABS blades driven by a quiet and energy-efficient 33W DC motor. The 1270mm blade span, combined with a calibrated 17° pitch, enables the fan to generate high-volume air movement while maintaining low mechanical resistance, ensuring smooth, consistent operation across all speed levels.
The motor’s advanced DC technology allows the fan to achieve rotational speeds of up to 172 RPM while maintaining exceptional efficiency of up to 424m³/hr per watt. This translates into a powerful airflow output reaching 14000m³/hr on its highest setting, with controlled reductions across intermediate speeds to suit varying comfort requirements. The aerodynamically curved ABS blades promote uniform air distribution and minimise turbulence, supporting whisper-quiet performance suitable for both sleeping areas and larger open-plan rooms.

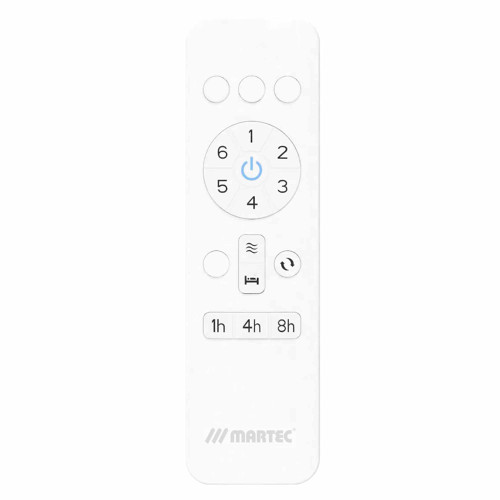

This model integrates WiFi control capability via the Smart Life app, enabling remote operation, scheduling, and adaptive airflow modes. The included handheld remote provides six selectable speeds, summer/winter reverse selection, breeze mode, sleep mode, and timer functions of 1, 4 or 8 hours, all operating on a stable 433MHz signal. A 10° hangsure canopy supports installation on ceilings with slight rake while maintaining proper blade clearance and stable rotational alignment.

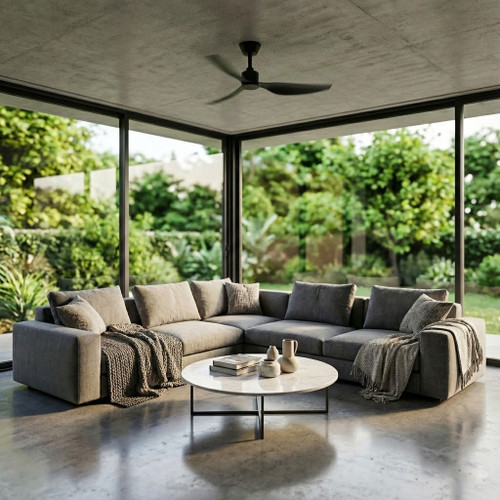

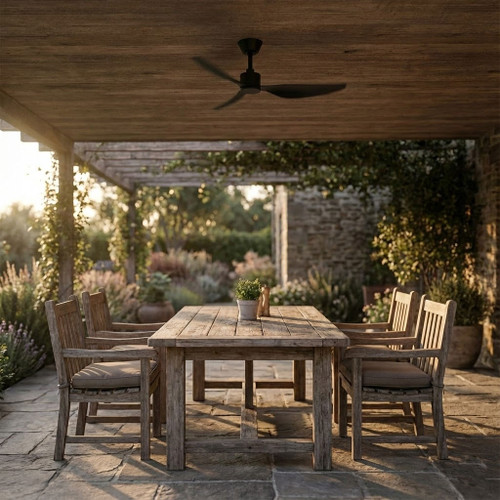

Designed for indoor and covered outdoor environments, this low-profile fan is suitable for installations requiring efficient cooling without compromising ceiling height or visual aesthetics. It must be installed by a licensed electrician to comply with GMA-516648-EA approval requirements and to ensure warranty validity. Supplied with an A23 12V remote battery and backed by a 6-year warranty (3-year in-home service plus 3-year motor coverage), this fan provides a reliable, long-term airflow solution with modern smart-control capability and a durable matt black finish.
COLOUR: Matt Black
MATERIAL: ABS (blades), Steel (body and canopy)
BLADES: 3
BLADE SPAN: 1270mm (50 inch)
BLADE PITCH: 17°
HANGSURE CANOPY: 10°
HEIGHT: 310mm
CEILING CANOPY: 150mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 33W
RPM: Up to 172
AIRFLOW EFFICIENCY: Up to 424m³/hr per watt
AIRFLOW: 14000m³/hr (Speed 6, highest); 11425m³/hr (Speed 5); 9690m³/hr (Speed 4); 7500m³/hr (Speed 3); 4660m³/hr (Speed 2); 2500m³/hr (Speed 1)
REMOTE CONTROL: Yes (WiFi; 6 speeds; reverse; breeze mode; sleep mode; fan off; timer 1hr/4hr/8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: WiFi remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor applications
FEATURES: Smart Life app connectivity; low ceiling slimline design
COMPLIANCE: GMA-516648-EA
WARRANTY: 6 years (3 year in-home + additional 3 years on motor)
