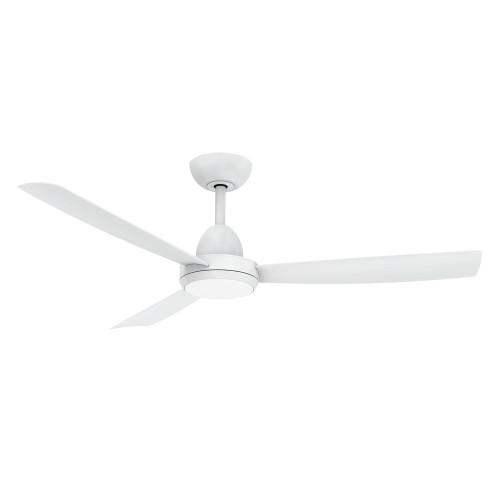

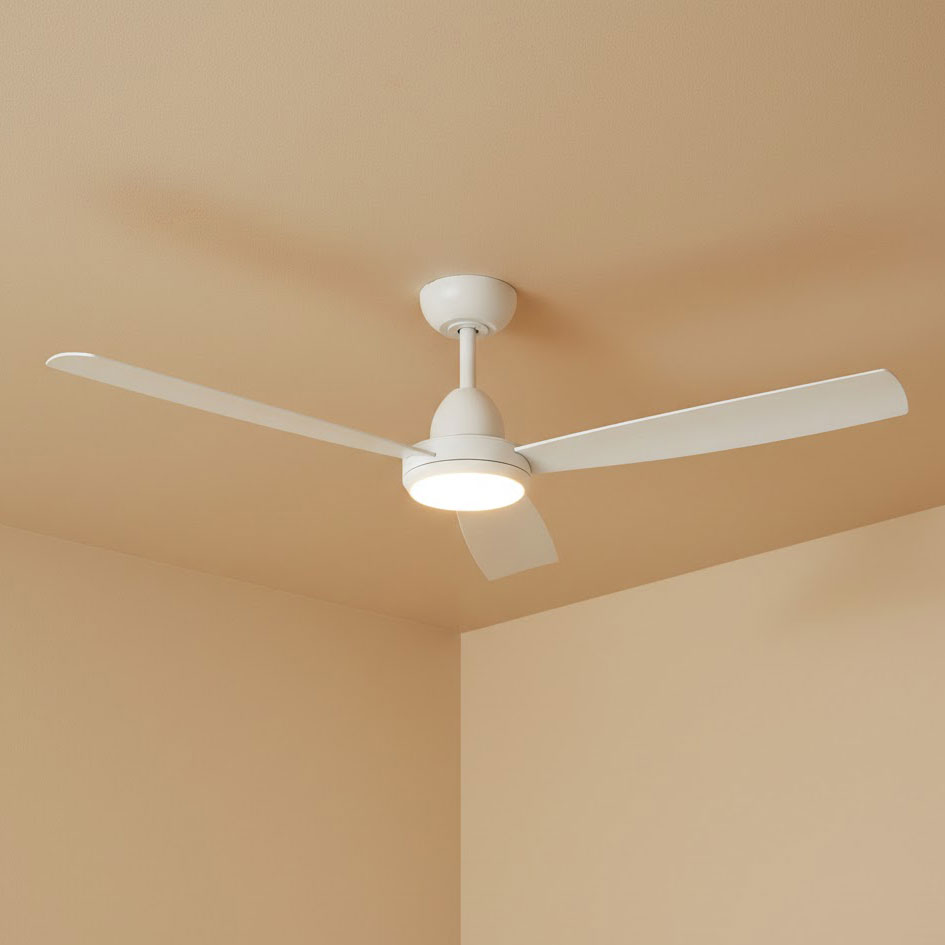

This ceiling fan is engineered as a high-performance air circulation and lighting solution for modern residential interiors and covered outdoor environments, finished in matt white for a clean, contemporary aesthetic. Designed with a precision-balanced 3-blade aerodynamic configuration over a 1220mm (48-inch) blade span, it delivers stable, evenly distributed airflow while maintaining a compact installed height of 320mm. The integrated construction and 10° Hangsure canopy system provide reliable mounting stability and optimal air throw across the operating range.
The fan is driven by a 23W brushless DC motor operating on 220-240V AC, delivering efficient, low-noise performance at rotational speeds of up to 195 RPM. Air movement is optimised across six electronically regulated speed settings, achieving a maximum airflow of 9000m³/hr with an airflow efficiency of up to 400m³/hr per watt. This high level of aerodynamic efficiency ensures consistent cooling performance while maintaining reduced energy consumption.
Integrated lighting performance is provided by a 20W fixed LED system housed beneath a PMMA lens cover for uniform light diffusion and long-term optical stability. The luminaire delivers up to 2200lm of output and features variable dimming with switchable colour temperature control from 2700K warm light to 6000K daylight white, allowing precise adjustment of both brightness and ambience. The LED system is rated for a service life of 20,000 hours at Ta25°C, supporting long-term reliability and reduced maintenance requirements.
The matt white ABS aerodynamic blades and body, combined with a steel ceiling canopy, provide a balanced combination of lightweight durability and structural strength. Operation is managed via a remote control offering six fan speeds, reverse cycle for summer and winter use, breeze and sleep modes, and timer functions for flexible environmental control. Designed exclusively for installation by a licensed electrician and backed by a 2-year in-home warranty, this ceiling fan delivers a refined balance of performance, efficiency, and dependable long-term operation.
COLOUR: Matt White
MATERIAL: ABS (blades and body), Steel (canopy), PMMA (lens cover)
BLADES: 3
BLADE SPAN: 1220mm (48 inch)
BLADE PITCH: 12°
HANGSURE CANOPY: 10°
HEIGHT: 320mm
CEILING CANOPY: 165mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 23W
RPM: Up to 195
AIRFLOW EFFICIENCY: Up to 400m³/hr per watt
AIRFLOW: 9000m³/hr (Speed 6 highest); 8000m³/hr (Speed 5); 7300m³/hr (Speed 4); 6100m³/hr (Speed 3); 5000m³/hr (Speed 2); 4300m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 20W
COLOUR TEMP: Switchable between 2700K (warm light) to 6000K (daylight white)
LUMENS: Up to 2200lm
LIFE SPAN: 20,000 hours at Ta25°C
DIMMABLE: Yes (variable dimming)

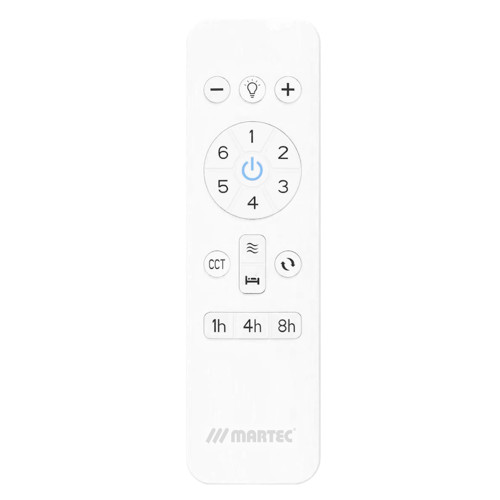

REMOTE CONTROL: Yes (6 speeds; reverse; breeze mode; sleep mode; light on/off; fan off; CCT selection; timer off only - 1hr 4hr 8hr; 433MHz)
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: Remote control; 1 x A23 12V battery (remote)
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor use
FEATURES: Fast fix blades for easy installation; slimline design; brushless quiet and efficient DC motor
WARRANTY: 2 years (in-home)
