This ceiling fan is engineered as a high-efficiency air circulation and lighting solution for modern indoor and covered outdoor environments, finished in matt white and configured with a precision-balanced 3-blade aerodynamic system over a 1220mm (48-inch) sweep. Driven by a 23W DC motor operating at rotational speeds of up to 195 RPM, the fan delivers stable and energy-efficient airflow performance, achieving a maximum airflow of 9000m³/hr with an airflow efficiency of up to 400m³/hr per watt. The 12° blade pitch is optimised for smooth volumetric air movement with minimal turbulence.
The structural construction integrates advanced polymer and metal components for long-term mechanical stability and corrosion resistance. The blades and body are formed from durable ABS, complemented by a steel ceiling canopy that ensures secure mounting and structural rigidity. The integrated hangsure canopy design supports installation on ceilings with up to a 10° rake, while the overall installed height of 320mm and the 165mm diameter ceiling canopy allow for efficient overhead clearance without compromising airflow distribution.
Lighting performance is delivered through an integrated 20W fixed LED system protected by a PMMA lens cover, producing a luminous output of up to 2200 lumens. The tricolour functionality allows switchable colour temperature selection between 3000K (warm white), 4000K (cool white), and 5000K (daylight white), enabling precise adaptation to different ambient lighting preferences and functional requirements. The LED system is rated for a service life of 20,000 hours at Ta25°C, ensuring long-term operational reliability with minimal maintenance.
Operational control is provided via an included wall controller for intuitive day-to-day use, with full summer and winter reversible functionality allowing seasonal optimisation of air circulation for enhanced thermal comfort and HVAC efficiency. The fan operates on a 220-240V AC 50-60Hz power supply and must be installed by a licensed electrician to ensure compliance and safety. Designed with a slimline profile and fast-fix blade system for streamlined installation, this ceiling fan is supported by a 2-year in-home warranty, offering dependable long-term performance for residential applications.
COLOUR: Matt White
MATERIAL: ABS (blades and body), steel (canopy), PMMA (lens cover)
BLADES: 3

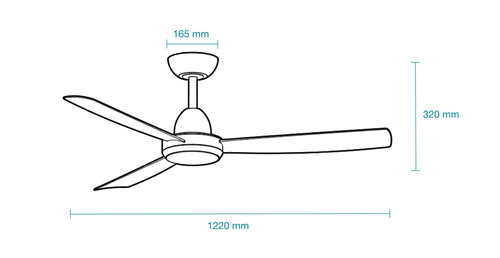

BLADE SPAN: 1220mm (48 inch)
BLADE PITCH: 12°
HANGSURE CANOPY: 10°
HEIGHT: 320mm
CEILING CANOPY: 165mm (diameter)
VOLTAGE: 220-240V AC 50-60Hz
MOTOR TYPE: DC
MOTOR WATTAGE: 23W
RPM: Up to 195
AIRFLOW EFFICIENCY: Up to 400m³/hr per watt
AIRFLOW: 9000m³/hr (Speed 3 - highest), 8000m³/hr (Speed 2), 7300m³/hr (Speed 1)
GLOBE: LED (includes fixed LED chips in fitting)
LED WATTAGE: 20W
COLOUR TEMP: Switchable between 3000K (warm white), 4000K (cool white), 5000K (daylight white)
LUMENS: Up to 2200lm
LIFE SPAN: 20,000 hours at Ta25°C
WALL CONTROL: Yes
REVERSIBLE: Yes (summer and winter mode)
INCLUDES: Wall control
INSTALLATION: By licensed electrician only
APPLICATIONS: Indoor and covered outdoor use
FEATURES: Fast fix blades for easy installation, slimline design
WARRANTY: 2 years (in-home)
