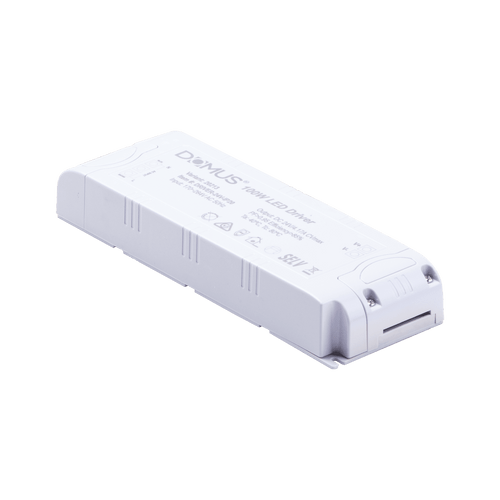

This LED driver is a high-performance power supply solution designed specifically for indoor lighting applications such as LED strip lighting, inground uplighters, and garden spike lighting. Engineered for reliability, it converts a standard 240V AC input into a stable 12V DC output, delivering a maximum wattage of 100W and a current of 8.33A. The unit features a robust white housing with an IP20 rating, ensuring safe operation within controlled internal environments.
Technical excellence is at the core of this device, which boasts a high power factor of greater than 0.95 and an impressive efficiency rating of up to 89 percent. It is fully TRIAC compatible, allowing for smooth dimming capabilities to create the desired ambiance in any setting. Furthermore, the driver is designed to be flicker-free when positioned less than two meters away from the light source, providing a consistent and high-quality illumination experience.
Safety and longevity are prioritized through an integrated suite of protection mechanisms, including secondary side short circuit protection, thermal overload protection, over temperature protection, and over voltage protection. These features safeguard both the driver and the connected lighting components from electrical irregularities. The inclusion of a five-year warranty further underscores the manufacturer's commitment to long-term durability and professional-grade performance.
Installation is streamlined with the provision of a one-meter flex and plug, facilitating a straightforward connection to the mains power supply. The compact dimensions of 189mm in length, 65mm in width, and 30mm in height allow for versatile placement in various architectural voids or enclosures. Designed for parallel wiring configurations, this 0.5kg unit represents a sophisticated and efficient choice for powering modern low-voltage LED systems.
PRODUCT TYPE: LED Driver
APPLICATIONS: Indoor use only; LED strip lighting; inground uplighters; garden spike lighting
WARRANTY: 5 years
COLOUR: White
IP RATING: IP20 (indoors only)
INPUT VOLTAGE: 240V AC
WATTAGE: 100W
DIMMABLE: Yes (TRIAC compatible)
DIMENSIONS: 189mm (length) x 65mm (width) x 30mm (height)
WEIGHT: 0.5kg
POWER FACTOR: >0.95
EFFICIENCY: Up to 89%
INSTALLATION: Complete with 1m flex and plug
OUTPUT VOLTAGE: 12V DC
OUTPUT CURRENT: 8.33A
PROTECTION: Secondary side short circuit protection; thermal overload protection; over temperature protection; over voltage protection
WIRING: Parallel wiring
FEATURES: Flicker free when less than 2m away from light source
